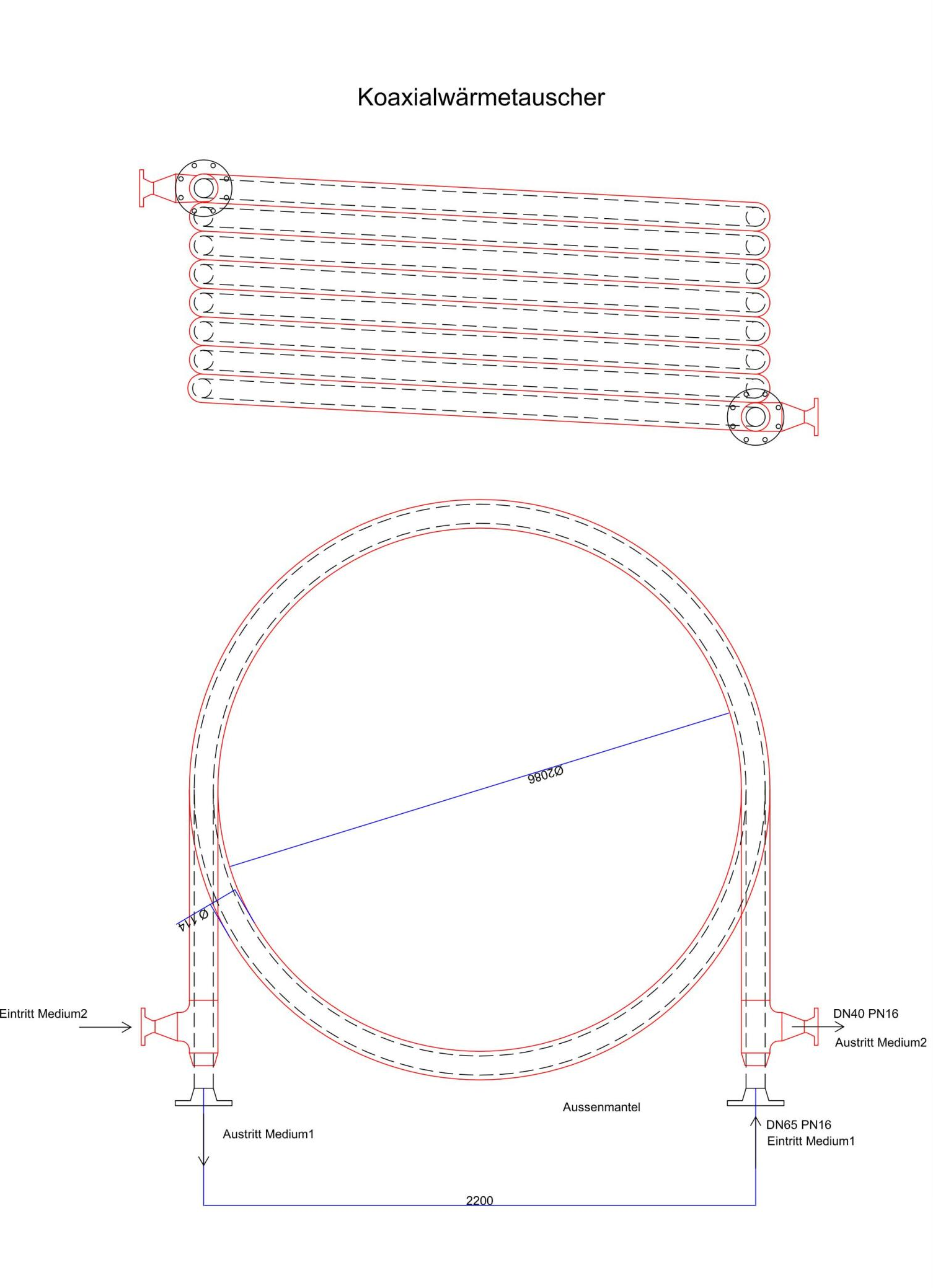

Example drawing of inlet / outlet medium DN65 / PN16, heating / cooling medium DN40 / PN16

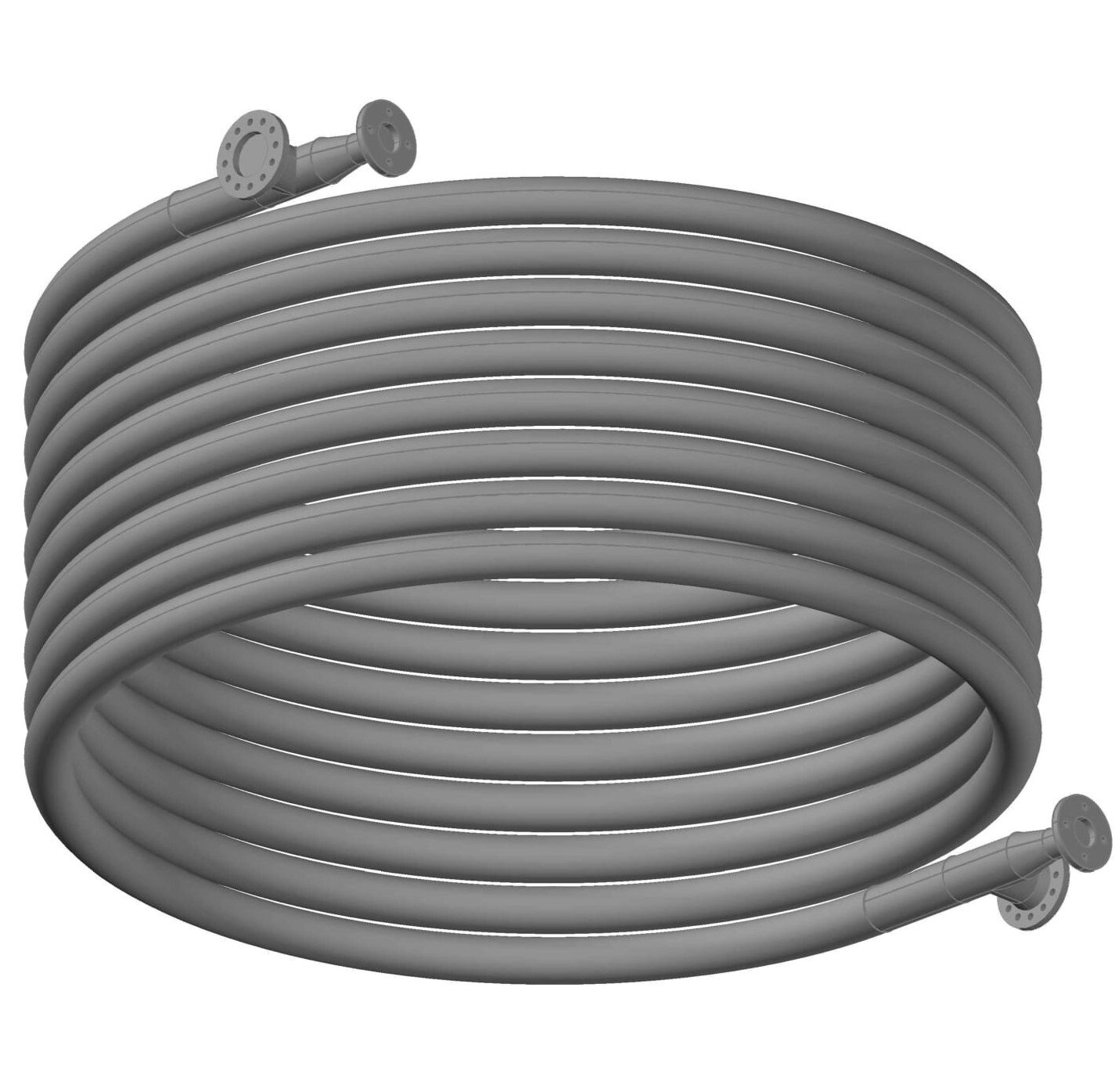

Maintenance-free * coaxial heat exchanger



Item number WT 1113


  • Coiled pipes in a spiral shape
  •    Countercurrent design for optimal temperature transition
  •    High degree of efficiency
  •    Lowest possible pressure loss
  •    Due to the smooth surface, hardly any adhesions possible
  •    No clogging
  •    Low repair and maintenance requirements

* Observe general care recommendations


Perfect price-performance solution for:

  • Agricultural businesses
  •    Operators of solar and combined heat and power plants
  •    Exhaust gas technology and condensing technology
  •  Temperature control and water jet technology
  •    Beverage and food industry


Our services

Competent advice

New production of individual heat exchangers

   Visualization and creation of a data sheet with all relevant data

DN entry / exit according to customer requirements

Ø of the coaxial heat exchanger according to customer requirements

   Exact technical dimensioning according to:

    + + customer-specific data

    ++  local conditions


Price on request

Stock: on request

to the print version

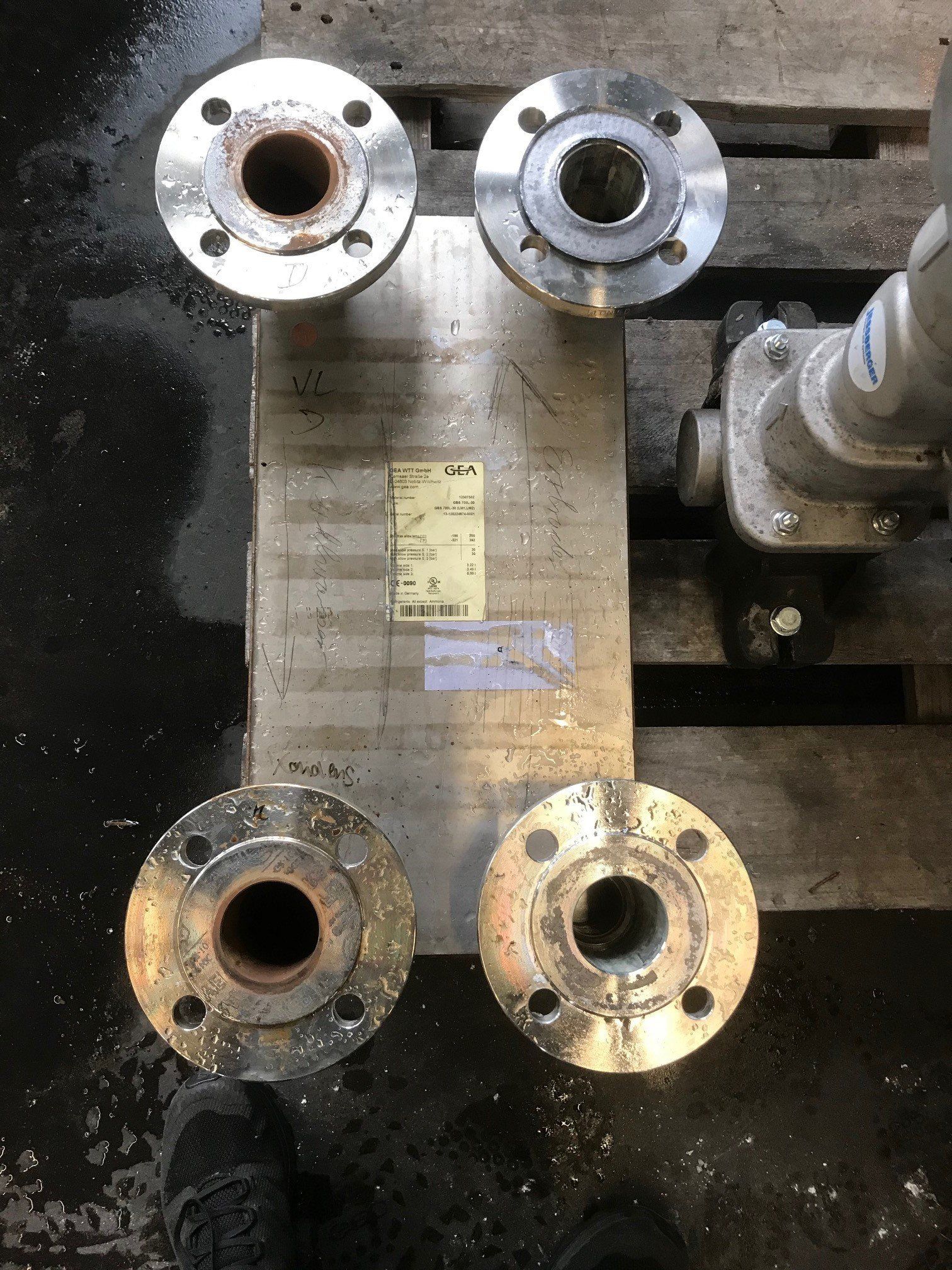

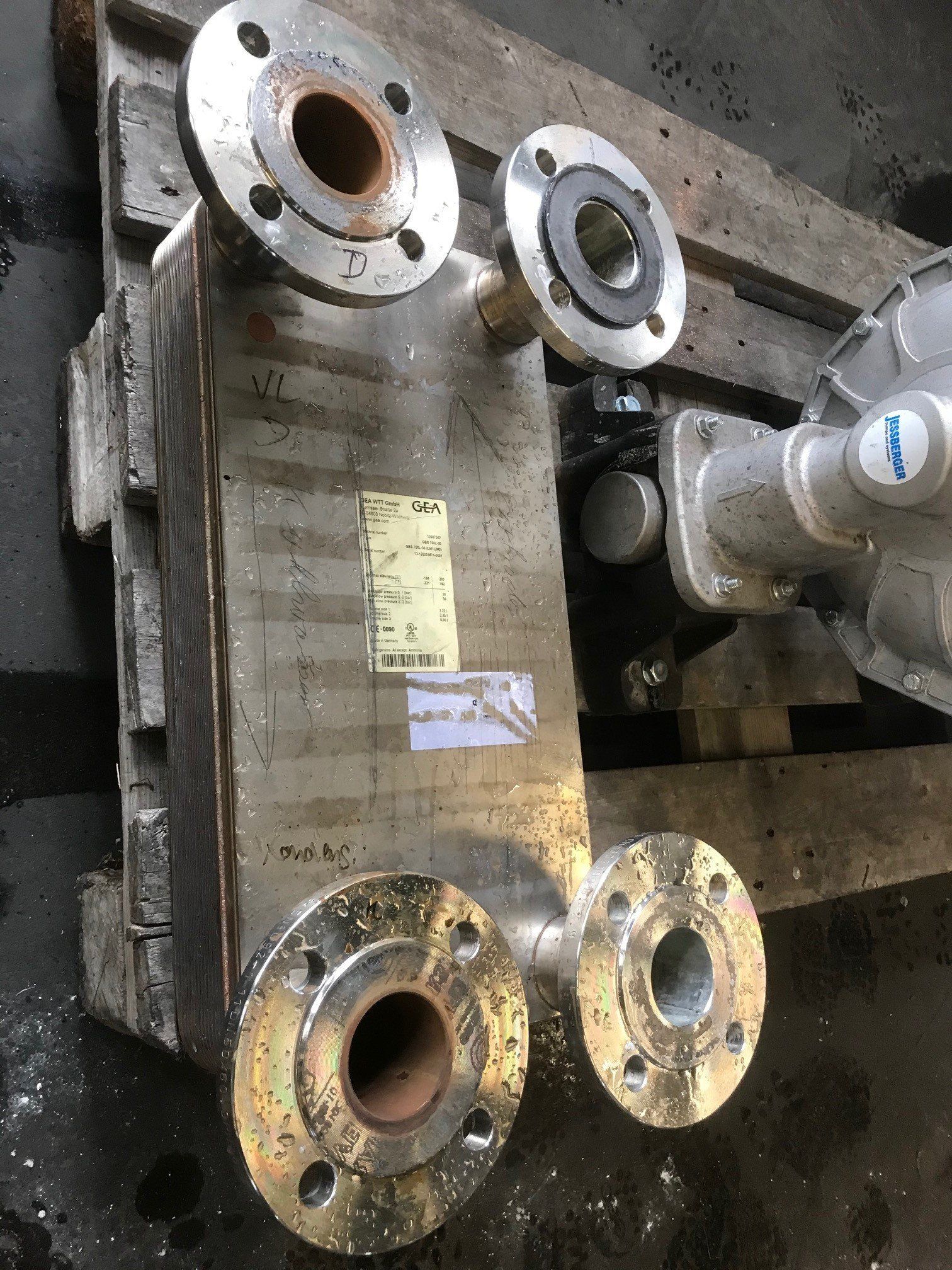

  Plate heat exchanger


Item number WT 1112

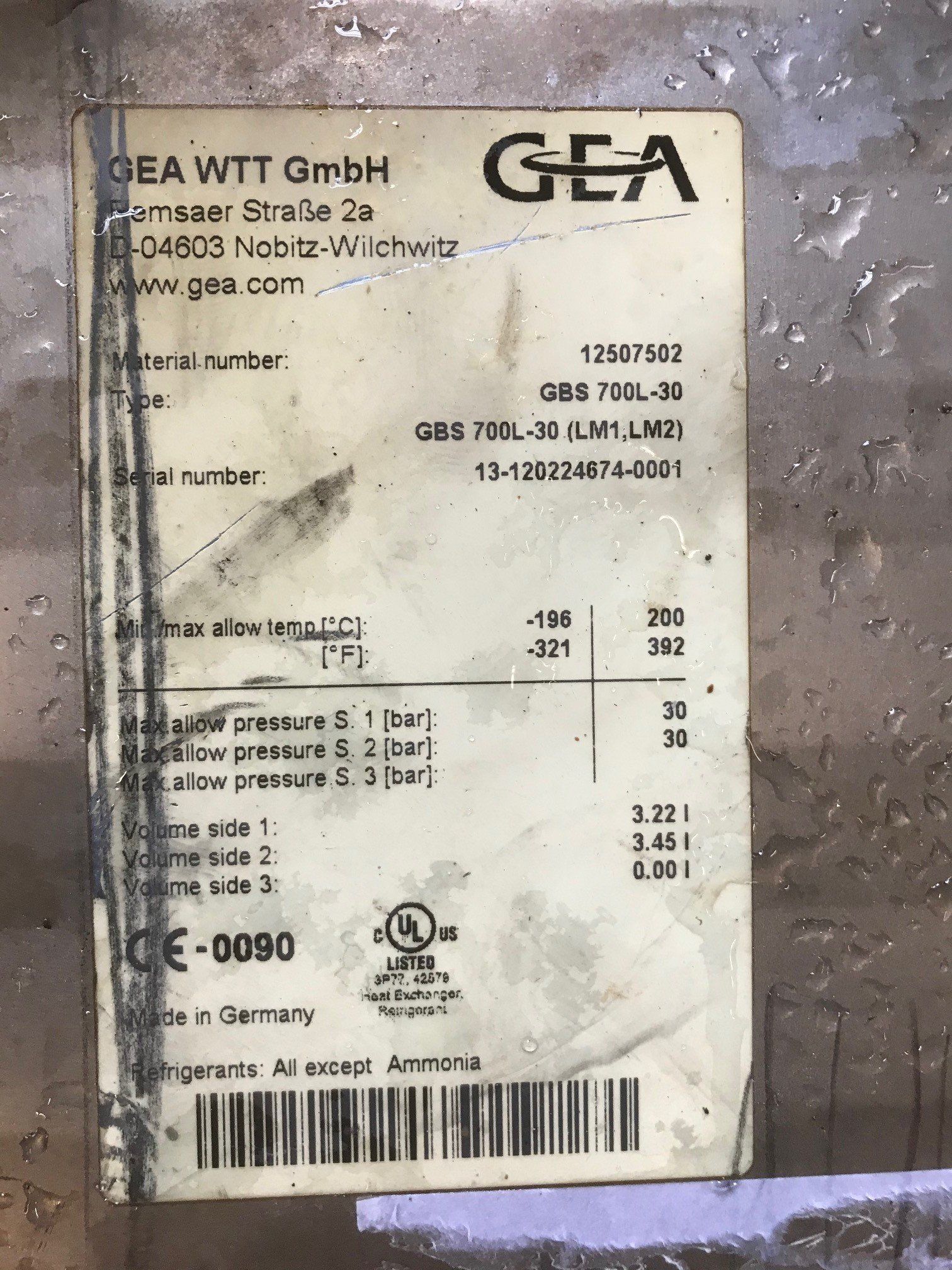

Manufacturer: GEA WTT GmbH

Type: Plate heat exchanger, GBS 700L-30

Manufacturer number: 13-120224674-001

Perm. Operating pressure: 0/30 bar

Temperature: 200 ° C Connections 2 "

Material: Stainless steel

Contents (volume): 3.22 / 3.45 ltr

Dimensions approx: 271 x 532 x 200mm


Price € 3400.00 net plus VAT and shipping costs

in stock

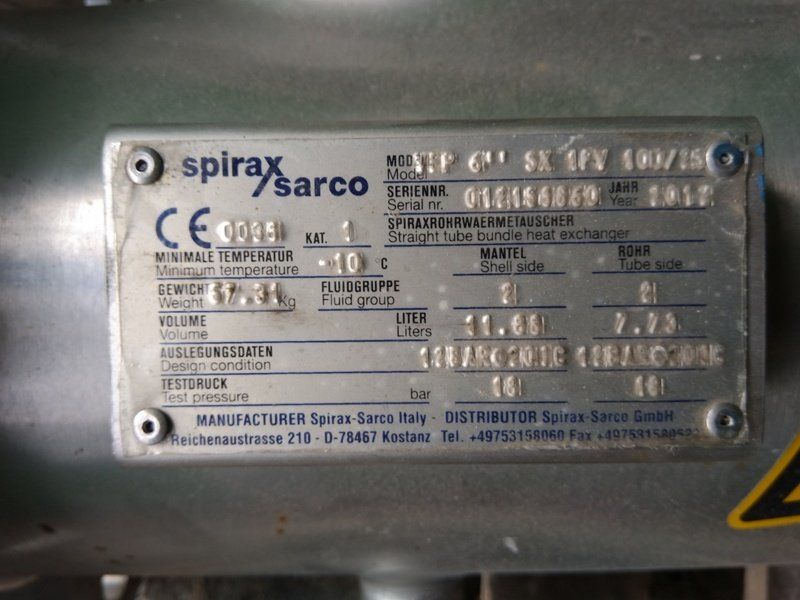

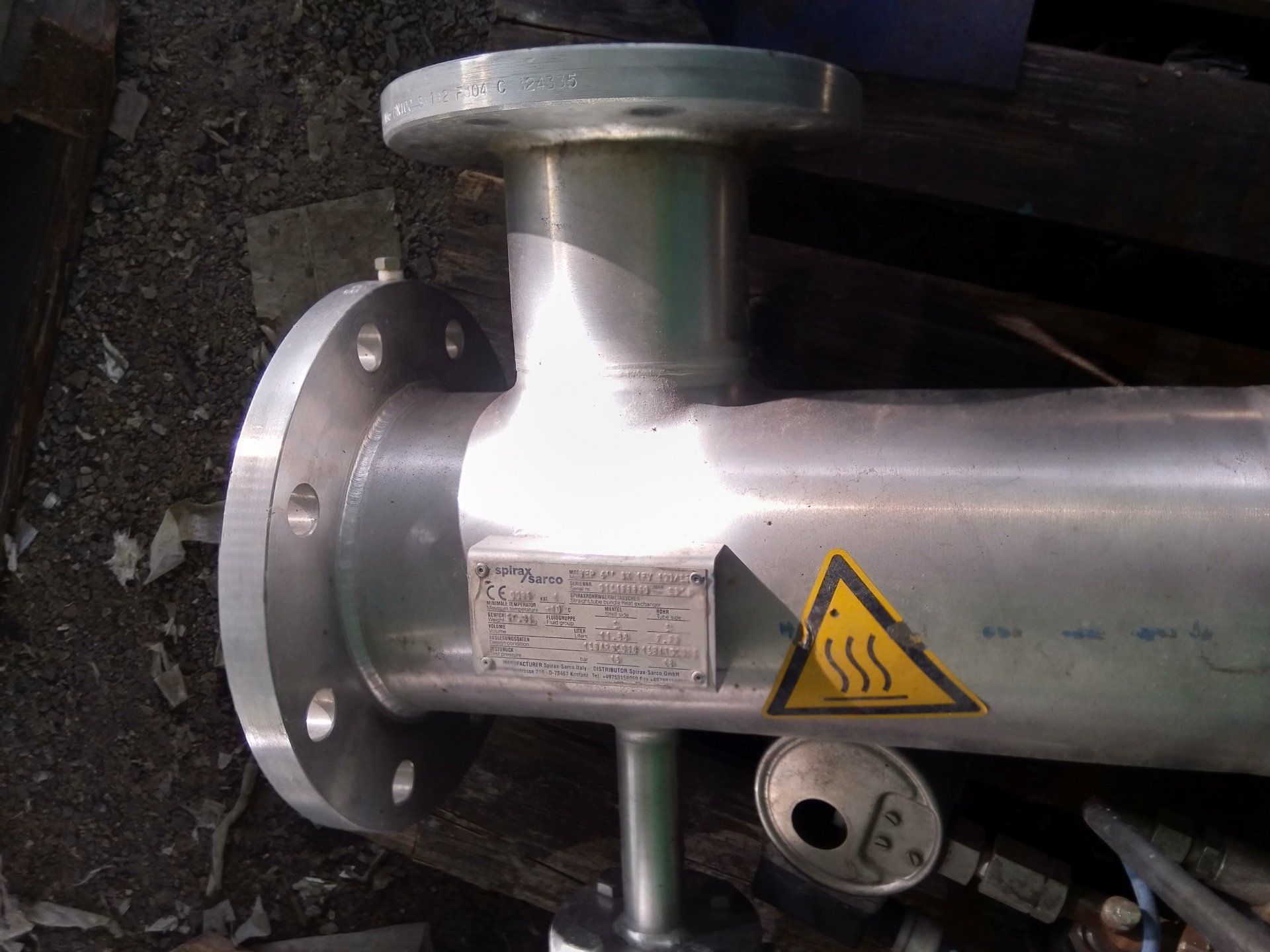

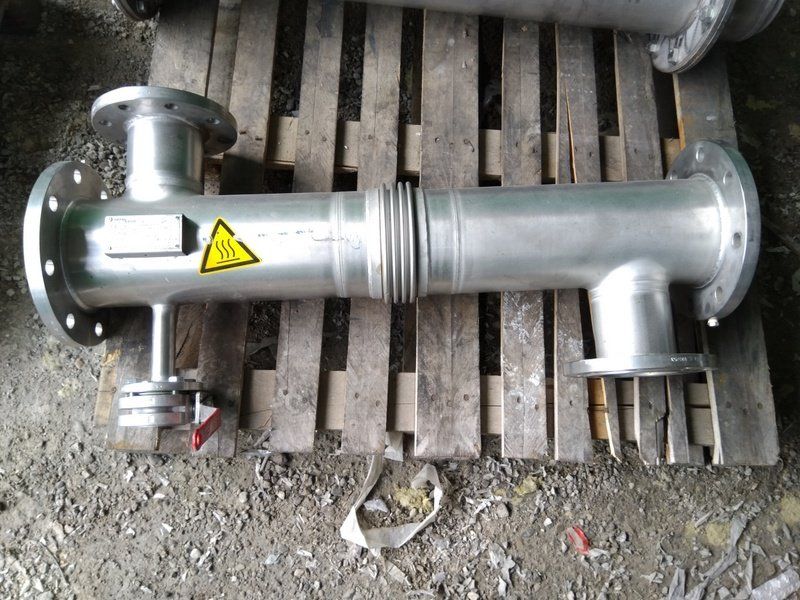

Spirax Sarco TURFLOW Type VEP


Item number WT 1114

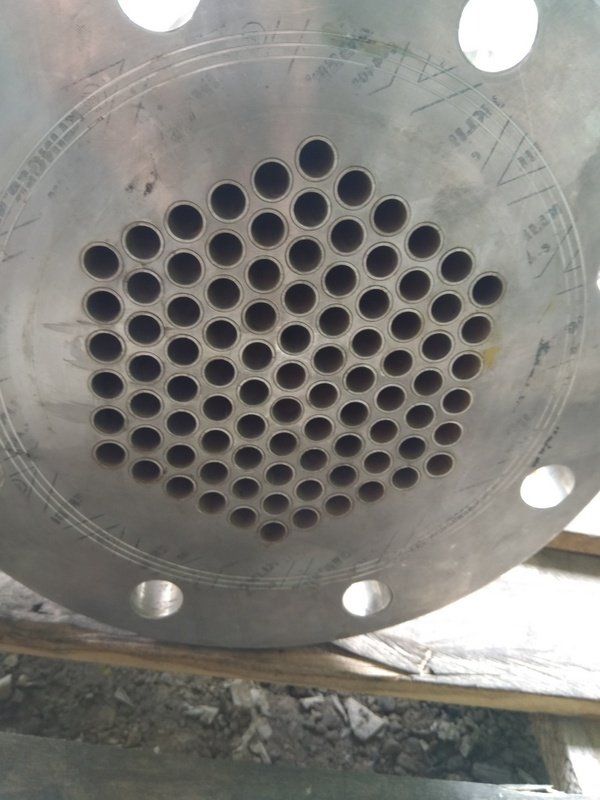

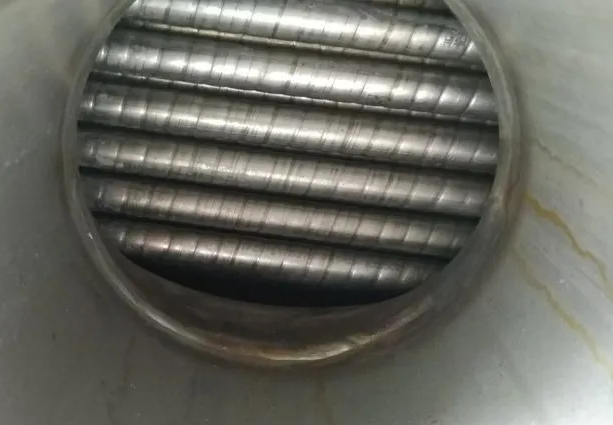

Swirl tube heat exchanger

VEP 6 "SX 1PV 100/25

Material: stainless steel

Operating temperature: jacket: 300 ° C / pipes: 200 ° C

Length: 1000mm

 Weight: 67KG

 Year of construction 2012

Test pressure: 18 bar

Inlet / outlet of exhaust steam: DN 100, PN 16

Steam inlet / outlet: DN 150, PN 16

Condensate outlet: DN 25, PN 16
